Bristol Channel Cutter, 1976

  • Length: 26'
  • Price: $38,000
  • Location: Seattle, WA

    The Bristol Channel Cutter has achieved unprecedented respect as a capable & safe passage maker. Dozens of these handsome, stout vessels have made ocean crossings, circumnavigations and are used as cruising homes by sailors who prefer simplicity, integrity and economy in their choice of boats. Few yachts have a more devoted, if not fanatical, group of owners. "Vixen" is hull #2 of the B.C.C.'s to be built by Sam Morse Co. (previous hulls were built in Vancouver, BC), and was hand finished by designer Lyle Hess's right hand man, Craig Johnson.

    Her joiner work is esquisite, her custom bronze hardware would be impossible to duplicate today. Highly recommended to those who seek the highest quality in a well proven cruising classic; a truly special boat.

    Recent upgrades include:

  • New Yanmar 3GM30F fresh water cooled engine with less than 20 hours
  • Custom Sunbrella full boat cover for complete winter protection and coverage
  • Upgraded aluminum propane tanks with new safety valves
  • Rebuilt rudder with old-growth fir and fresh coats of varnish

    Additional Specs, Equipment and Information:

    Dimensions

  • LOA: 39 ft 0 in
  • Beam: 10 ft 0 in
  • LWL: 26 ft 3 in
  • Length on Deck: 28 ft 1 in
  • Minimum Draft: 4 ft 7 in
  • Displacement: 13800 lbs
  • Ballast: 4200 lbs

    Engine

  • Engine Brand: Yanmar
  • Engine Model: 3GM30F
  • Engine Type: Inboard
  • Engine/Fuel Type: Diesel
  • Engine Hours: 20
  • Propeller: 2 blade propeller
  • Drive Type: Direct Drive
  • Engine Power: 24 HP

    Tanks

  • Fresh Water Tanks: Plastic (70 Gallons)
  • Fuel Tanks: 1 Aluminum (20 Gallons)

    Electronics

  • VHF - ICOM IC-M56
  • Compass - SESTRAL

    Hull Information

  • Schedule: 1.5 oz mat and 24 oz roving = 1 unit
  • 1 1/2oz mat
  • 1 1/2 oz mat and 10 oz cloth
  • 1 1/2 oz mat and 18 oz roving
  • Five units, one at a time
  • 1.5 oz mat * 24 oz roving up the gunnels, five more units under water, two more extra units in keel area
  • Minimum hull thickness: > 3/8" at sheer, > 5/8" at waterline, > 1" keel area
  • Hull strengtheners - longitudinal, floors, etc: Laminated false frames glassed in from the sheer clamp to the cabin sole prior to construction of built-ins.
  • Deck (beams, etc): 1 1/4" yellow cedar over 1/2" plywood bolted through hull flange on 6" centers. Deck beams are support flanges bolted through 1 5/8" by 3 3/4" full length on 14" centers.
  • Hull to deck joint type and fastenings: sheer clamp, bolted through hull and bulwark stanchions locks on 14" centers.
  • Bulkheads: marine plywood: painted and trimmed in mahogany. Key hole bulkheads.
  • Ceiling: Yellow cedar planking, primarily finished bright, except behind the / no molded interior.
  • Hull colors: House: off white; Hull topsides: Green; Underbody: Blue anti fouling

    Deck Equipment

  • Bronze spreaders and bronze hardware, bronze boom horse and parrels
  • Bronze deck hardware: closed chocks and cleats
  • Full deck canvas cover
  • Canvas sail covers

    Rigging

  • Tanbark sails in generally good condition. Most very little use.
  • Shrouds and stays are 1:19 SS with open turnbuckles in good order.
  • Chainplates are bronze, and all in very good condition.

    Other

  • Anchors: (1) CQR and (1) Bruce
  • Stove: Luke Heritage 2 Burner
  • Toilet: Marine Manual
  • Bilge pump: Heavy duty WHALE Gusher manual bilge pump @ 30GPM
  • Heating System: Wood sailor stove
  • Opening port lights: four round bronze with double dogs
  • Ice box: yes
  • Mattress pads and cushions in good condition
  • Brass lamp
  • Amplifier with Sony Speaker System

  • Sailboats for sale

    Catalinas/Capris for Sale

    Hunters for Sale

    Macgregors/Ventures for Sale

    Sailboat Photo Gallery

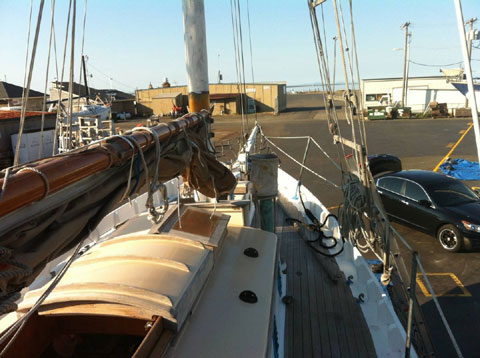

    Bristol Channel Cutter, 1976 sailboat

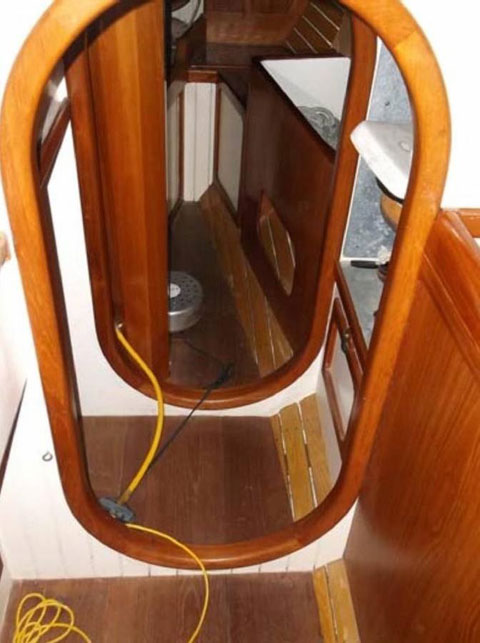

    Bristol Channel Cutter, 1976 sailboat

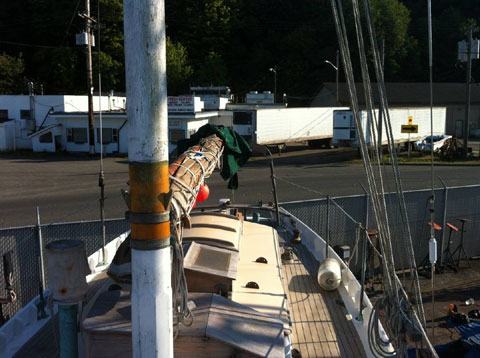

    Bristol Channel Cutter, 1976 sailboat
